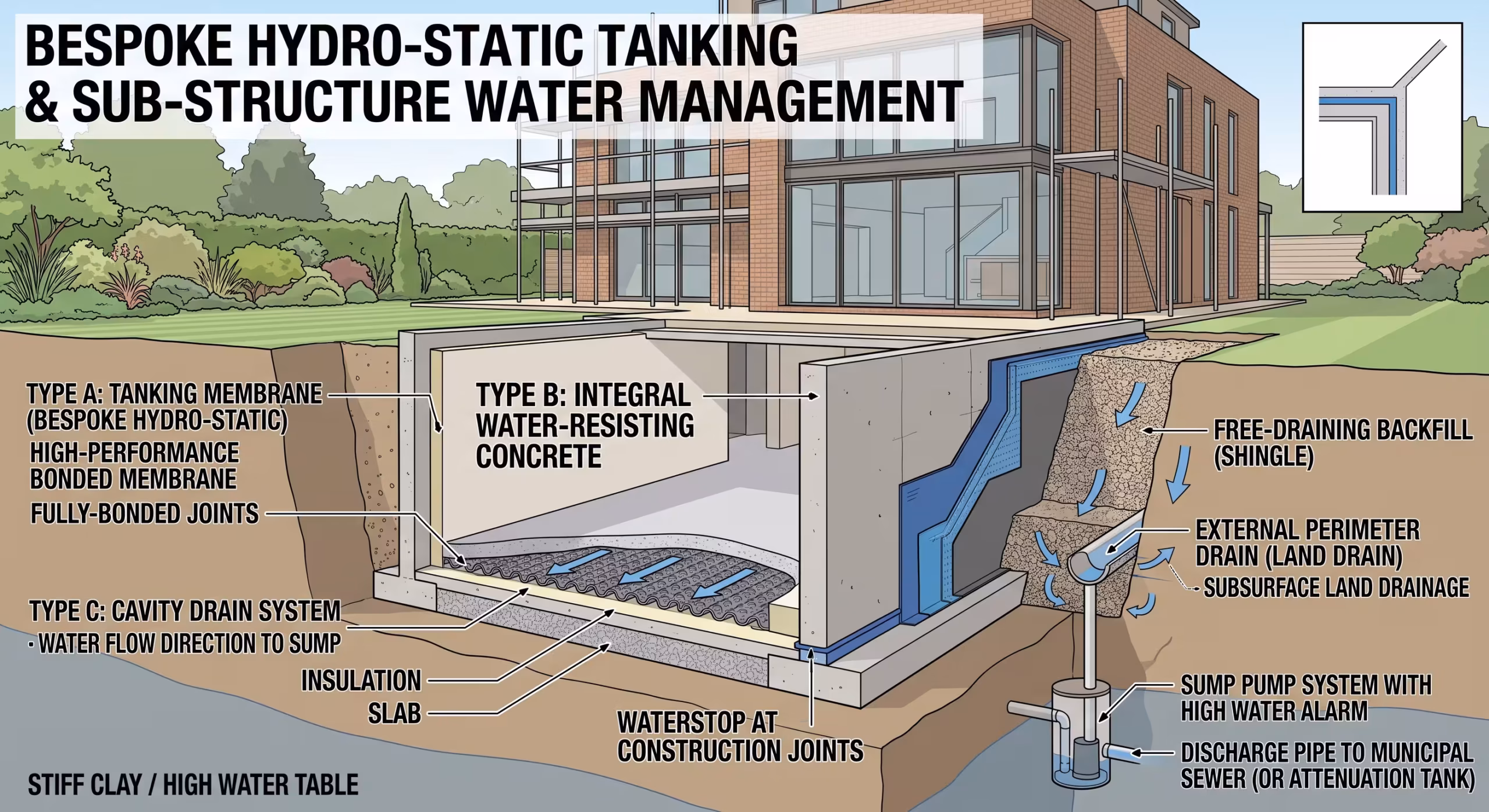

Bespoke Hydro-Static Tanking & Sub-Structure Water Management
In West London’s luxury home market, building below-ground spaces needs exact water control. As West London's most trusted builder for basement conversions, ELB Construction Services treats hydro-static tanking as the main line of defence. Consequently, this protects your home equity from damp and insurance issues.
Across prime areas like Kensington & Chelsea [RBKC], Fulham [LBHF], Barnes [LBRUT] and Chelsea, digging under old homes needs strict compliance with architectural building design rules. Specifically, setting up a clear waterproofing plan under the BS 8102:2022 Code of Practice gives you full safety and complete peace of mind.
1. Lowering Risk & Protecting Home Value
Homeowners who invest in basement conversions look beyond fine finishes. As a result, their main focus stays on stopping leaks, wall damp and lost home cover.
For instance, when water tables rise, heavy rain fills local ground. This water pressure forces leaks through wall joints and small cracks. Therefore, installing a good drainage layout backs your £10M structural cover and keeps your 10-year build guarantee safe.

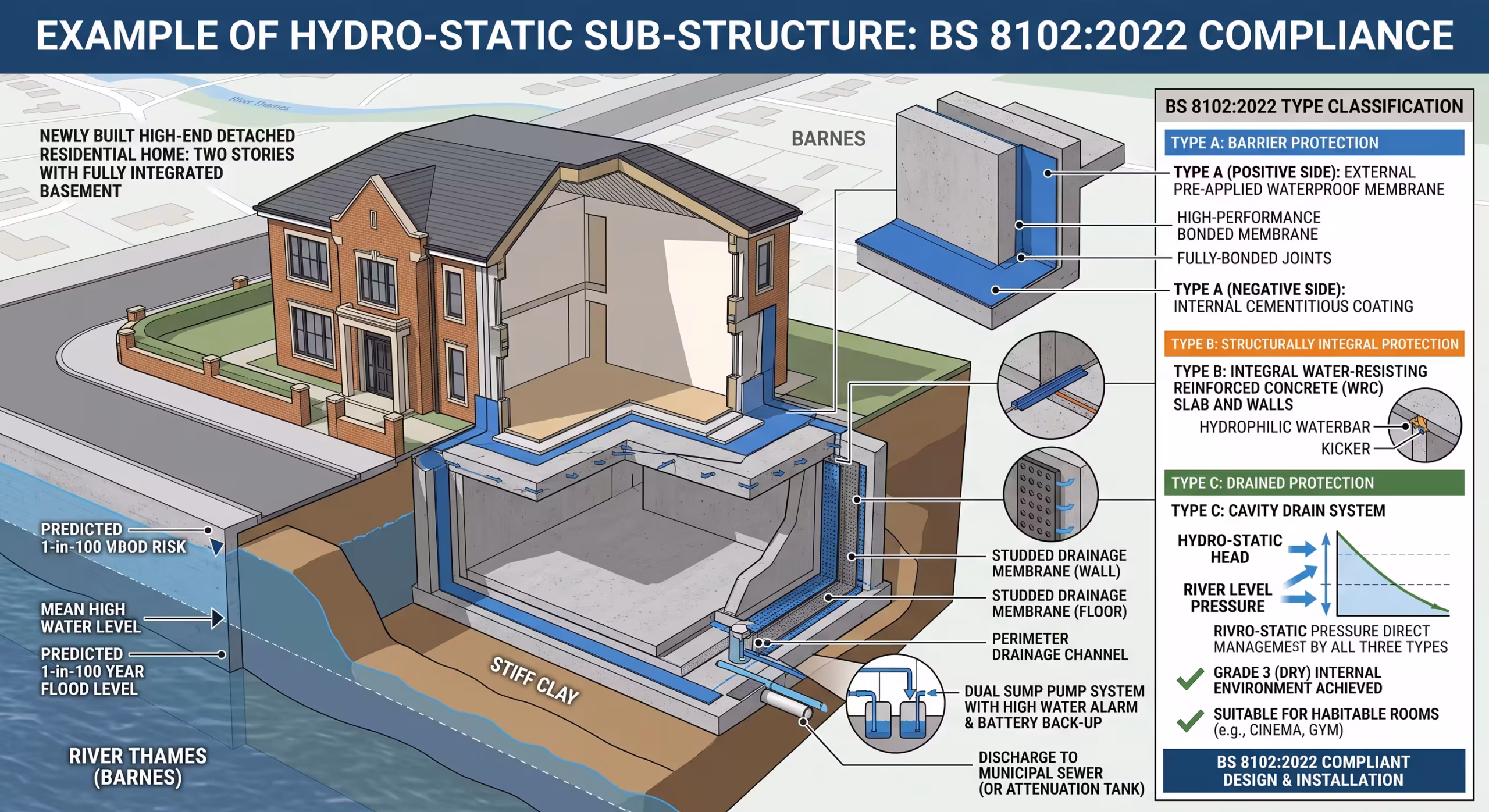

2. BS 8102:2022 Waterproofing Types
British Standard 8102:2022 sets out three clear ways to stop water. In high-risk London soil, combining these choices adds essential safety layers:
Type A (Barrier Layer)
A full waterproof coat placed on outside walls to stop groundwater pressure on turnkey new builds.
Type B (Solid Concrete)
Water-resisting concrete walls built with tight seal strips along joint gaps on house extensions.
Type C (Drained Cavity)
An inner stud sheet that guides wall leaks into floor drains and pump sumps during home refurbishments.
Barnes Area (SW13): High Water Table Control
Near river banks, wet gravel causes rising ground pressure in Barnes SW13 basements. Thus, our plans use Type C cavity sheets with dual sump pumps, battery backups and warning alarms under local flood rules.

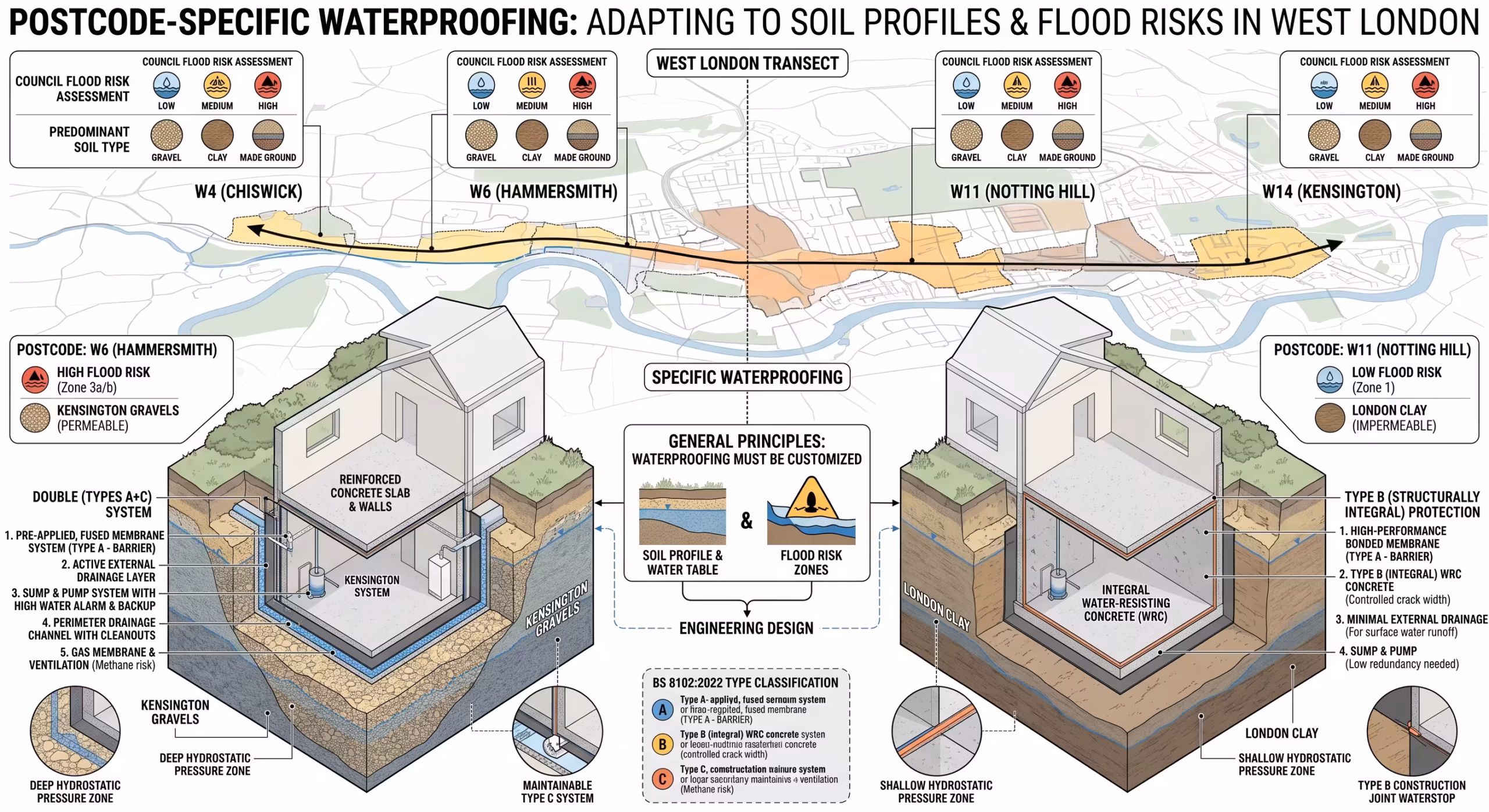

3. Local Ground Plans by Postcode
Soil types and flood risks change across West London streets. Consequently, waterproofing setups must adapt to each local area to guarantee dry homes:
Fulham Area (SW6): Focuses on turning old coal vaults into dry utility rooms under tight property limits. In addition, we use Type C cavity sheets and perimeter edge channels. Learn more in our Living in Fulham Guide.
Party Wall Damp Isolation
In terraced homes, water passing through shared party walls poses a key threat. However, setting up clear access points lets engineers flush drain lines every year, keeping full safety guarantees active.
Water pressure builds up when groundwater rises above floor slabs or footing depth. Because water is heavy, it pushes hard against side walls and pushes upward on floor slabs. However, risks change based on local ground conditions:
- In River Terrace Gravels (Fulham [LBHF], Chelsea [RBKC] and Wandsworth): Fast water flow recharges local ground quickly. As a result, storm water spikes groundwater fast, creating high side pressure against basement walls.
- In London Clay Areas (Richmond and Outskirts): Clay holds water tightly and stops deep drainage. Thus, rainwater sits in topsoil or pools above clay beds. Furthermore, wet clay swells and shifts, which causes wall cracks and lets water in.

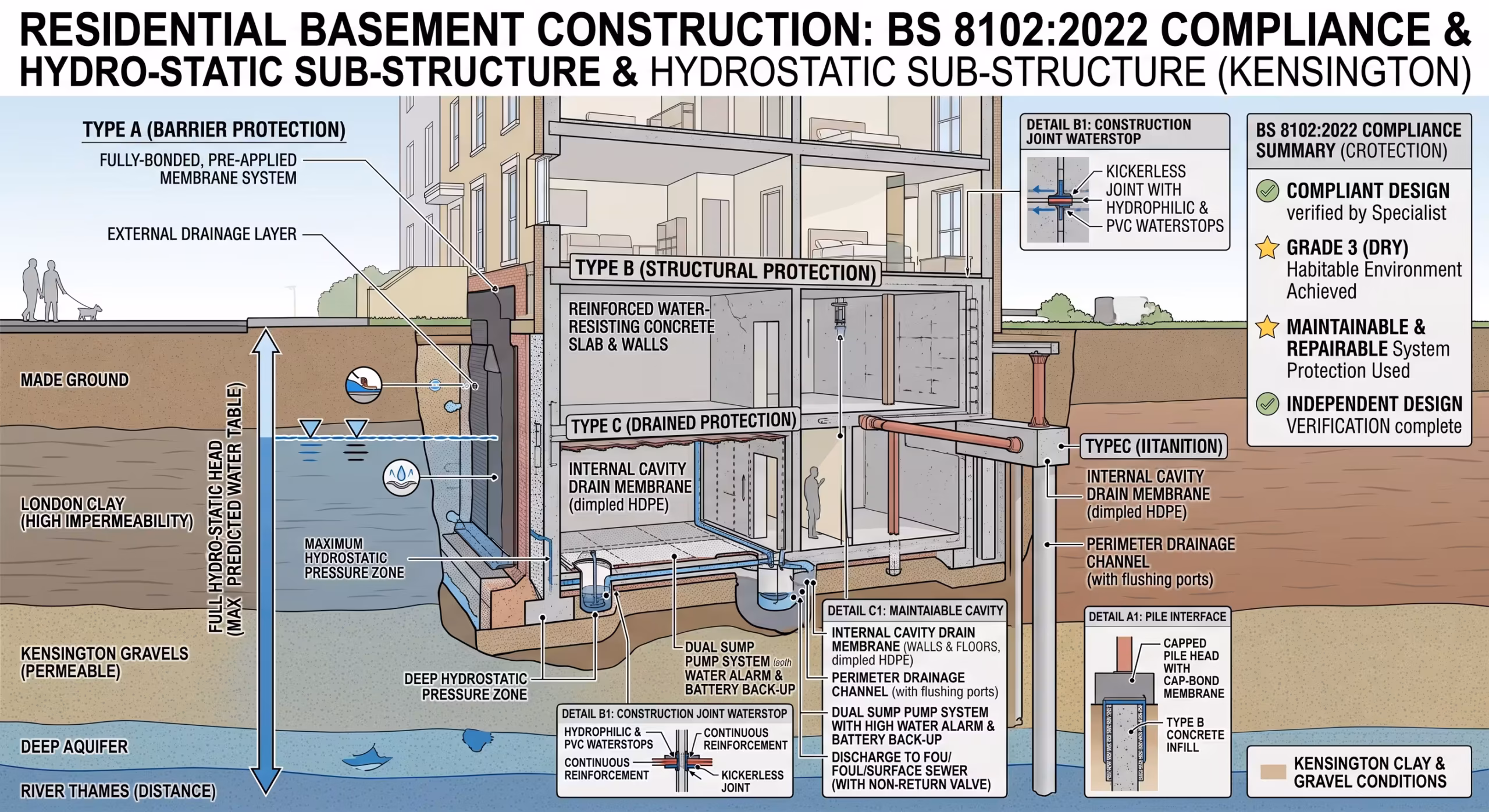

Kensington Area (W8 / SW7): Deep Basement Tanking
Deep basements that meet RBKC garden rules in Kensington need strong protection. Therefore, our team combines Type A tanking coats with Type C cavity sheets along old listed party walls.
4. Direct Review: Solid Tanking vs. Cavity Drainage
Choosing between solid Type A tanking coats and managed Type C cavity drains means looking at ground shifts, water pressure and boundary lines across West London.
Key System Benefits
- Gains Full Room Space: Areas like Kensington, Fulham and Richmond hold top land values. Therefore, deep tanking lets you build down safely when you cannot expand outward.
- Stops Heavy Water Pressure: Dense clay holds vast amounts of groundwater. As a result, Type A coats form a tough barrier that stops wet soil from soaking brick walls.
- Complete Moisture Control: Unlike basic sumps that collect water inside, solid tanking keeps main walls dry. Consequently, this stops damp smells and rot.
- Strengthens Wall Joints: Modern tanking coats bond right into old brickwork. Thus, this step protects structural walls against long-term water wear.

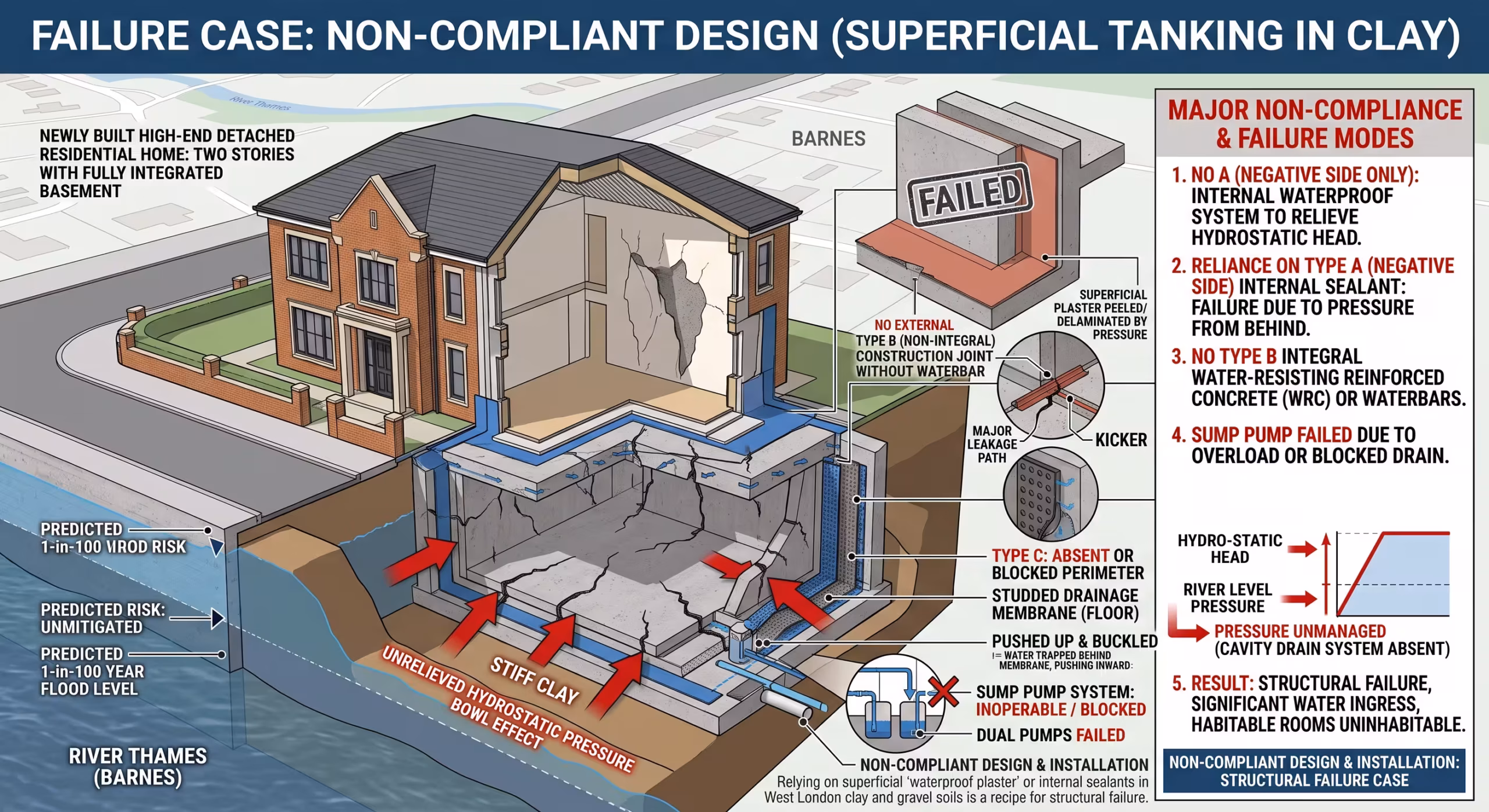

Risk Factors & Control Steps
- Risk of Small Cracks: Ground clay shifts with summer dry spans, while street traffic brings minor shakes. Because solid tanking is stiff, we back it up with flexible cavity sheets.
- Needs Precise Work: Tanking demands clean, smooth wall surfaces. For example, leaving an unsealed pipe gap breaks the seal. Therefore, ELB tests every step during the build.
- Neighboring Pressure Shifts: Blocking water completely can push groundwater toward nearby party walls. However, our team carries out checks to keep Party Wall rules safe.
- High Setup Costs: Cleaning old brickwork and applying thick coats takes careful time. You can review realistic costs using our construction cost tool.
5. Structural Stress Points & Easy Maintenance
Joints & Wall Base Points: The joins where floor slabs meet side walls form common leak paths. In response, custom build plans use expanding seal strips and tough liquid coatings at these gaps to handle movement.
Flexible Sheet Stretch: Wet soil moves while fresh concrete sets and shrinks. Consequently, high-grade liquid sheets must yield over 450% stretch ability to flex with movement without snapping the seal.
Drainage & SuDS Integration: Sub-ground water control connects directly with Sustainable Drainage Systems (SuDS). Installing crate systems holds heavy storm runoff and stops water surges around home walls.
System Access & Flushing: To pass home mortgage and insurance rules, Type C cavity drains need access ports. Without clear flushing points, drain channels risk clogging up with silt over time.
Final Thoughts: Careful Engineering Wins
In conclusion, protecting lower-ground spaces requires sound planning. By following BS 8102:2022 rules, using 450% flex sheets and adding clear access drain sumps, your basement stays dry, safe and fully covered for decades. Try our construction cost tool to plan your build budget today.
